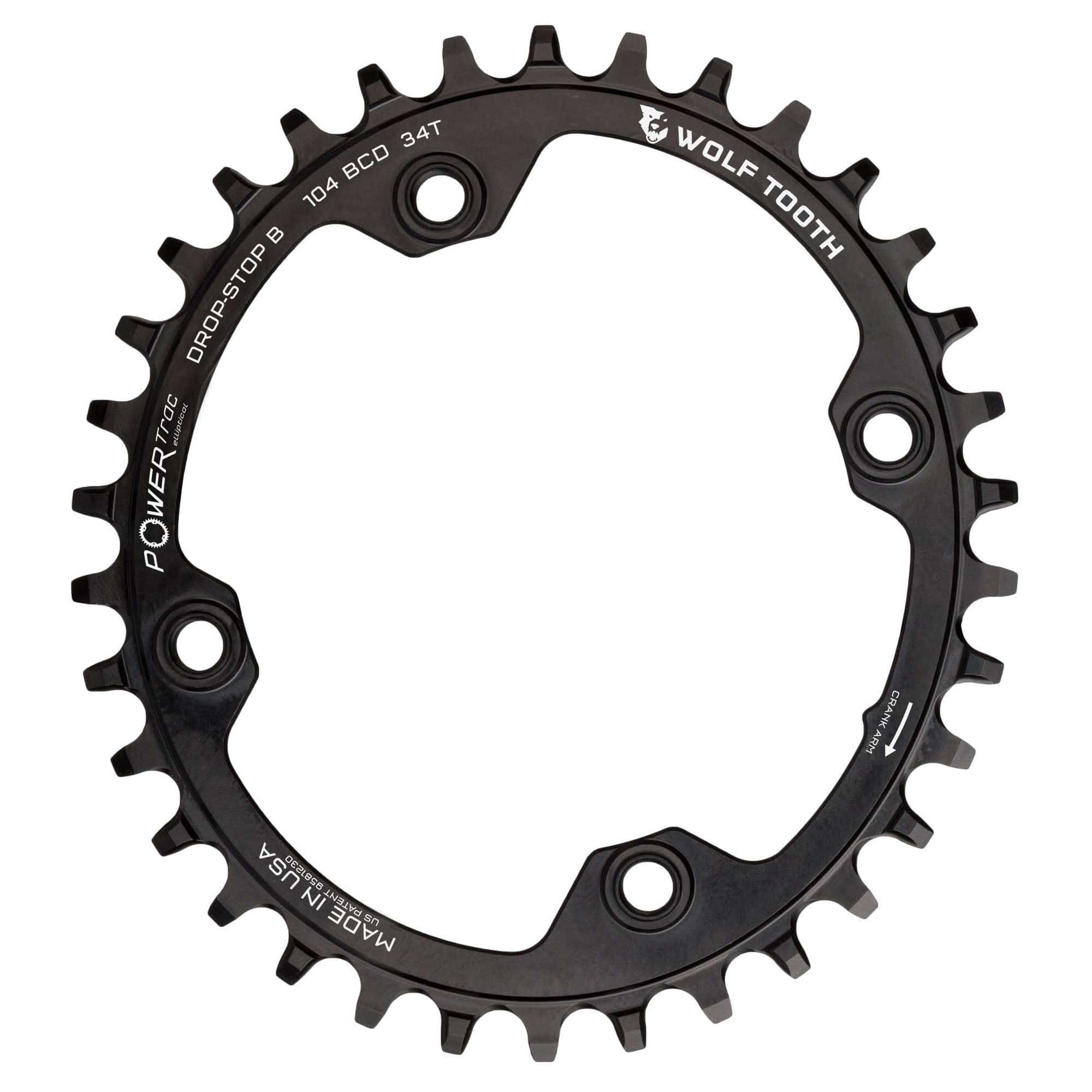

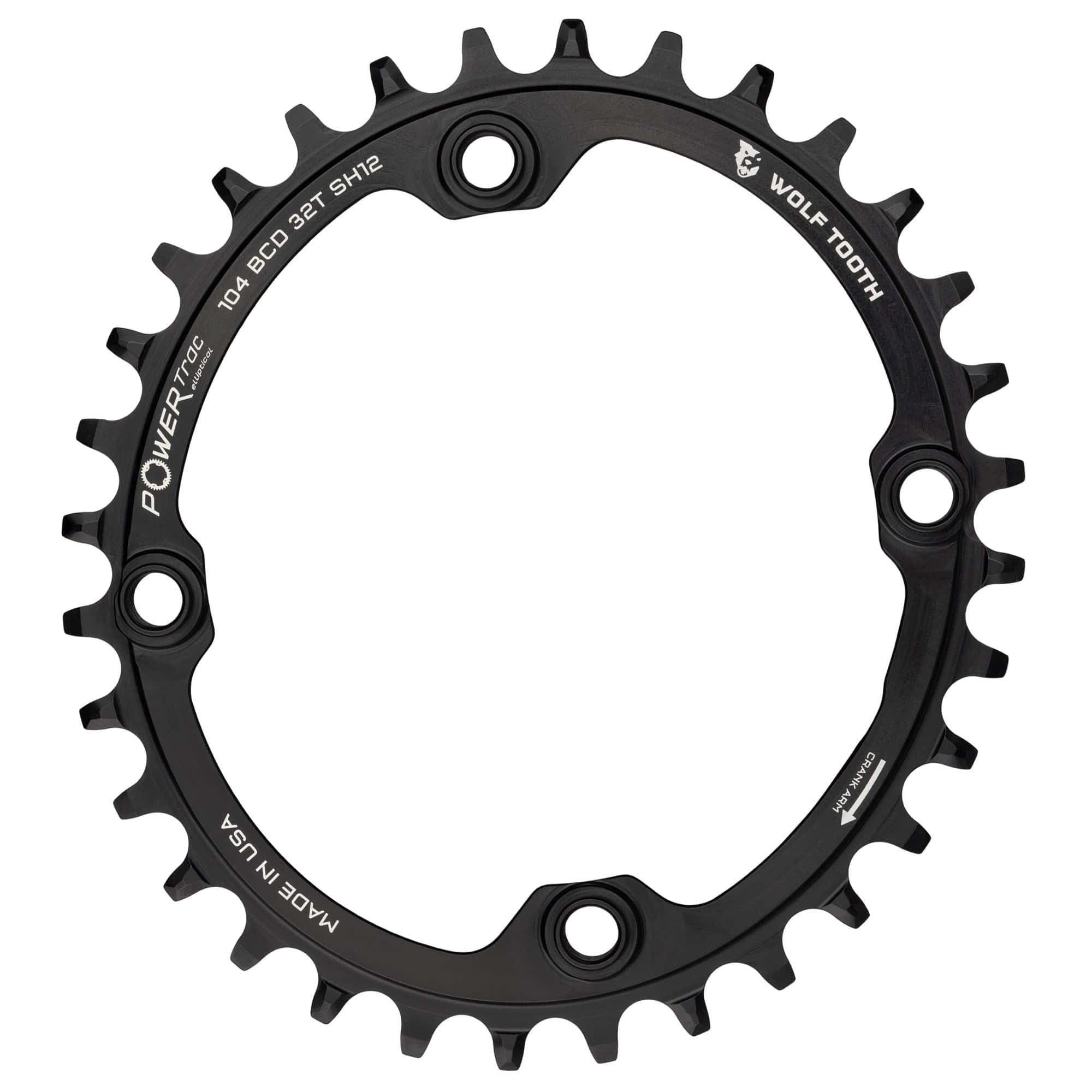

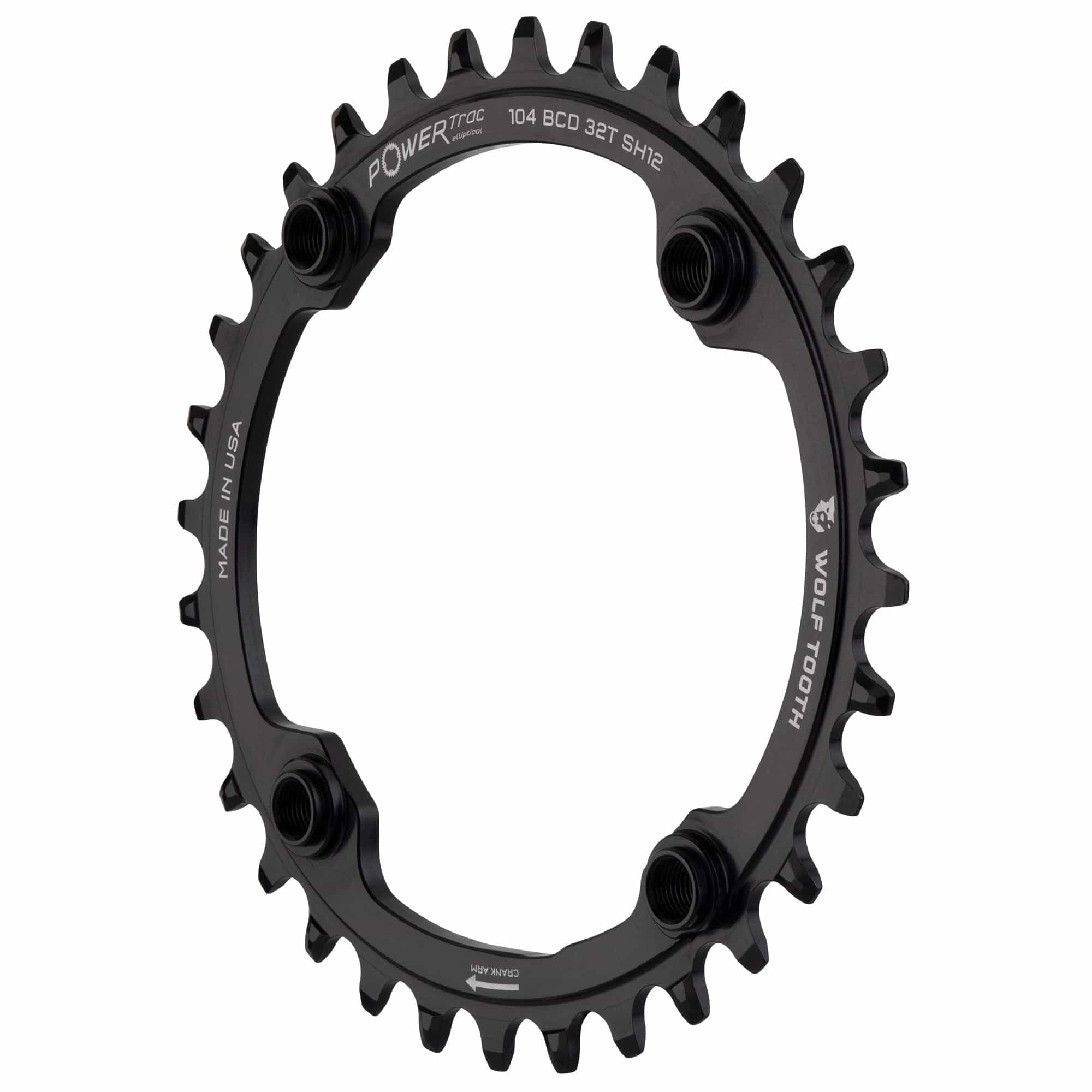

Oval 104 BCD Chainrings
Compatibility
- These rings fit any 104 BCD crankset
- Designed to meet the requirements for E-bike use
- Chainring bolts:
- DropStop B options use 10mm bolts
- DropStop ST (only avialable in 34t) option use 6mm bolts, unless using a Bash ring
- Wolf Tooth’s patented wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- Quarq power meter compatible with size 34t. Filing is required for 32t fitment onto some older Quarq Power meters. No modifications are required for the DUB Quarq Power meter.
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance.)
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
- Recommend the use of a clutch style rear derailleur for the best chain security.
Related Products
- 104 BCD bashrings
Tech Specs
Weight: 34T • 48g
Material: 7075-T6 aluminum
Made in the USA
Patent and trademark information
Select Color
Select Tooth Count
Select Tooth Profile
From $71.95
Oval 104 BCD Chainrings—
$71.95
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Compatibility
- These rings fit any 104 BCD crankset
- Designed to meet the requirements for E-bike use
- Chainring bolts:
- DropStop B options use 10mm bolts
- DropStop ST (only avialable in 34t) option use 6mm bolts, unless using a Bash ring
- Wolf Tooth’s patented wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- Quarq power meter compatible with size 34t. Filing is required for 32t fitment onto some older Quarq Power meters. No modifications are required for the DUB Quarq Power meter.
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance.)
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
- Recommend the use of a clutch style rear derailleur for the best chain security.
Related Products
- 104 BCD bashrings
Tech Specs
Weight: 34T • 48g
Material: 7075-T6 aluminum
Made in the USA
Patent and trademark information
